How to Use This Guide

This guide defines how information is encoded at Arcanary.

It applies to:

models
files
documents
folders
drawings
spatial structures
elements and materials

It is not software-specific and not project-specific.

It describes a way of thinking that allows information to remain:

consistent
searchable
scalable
and understandable over time.

You can read this guide:

top to bottom to understand the full system, or
by section as a reference during production.

If something is named correctly, it is already organised correctly.

1. Arcanary Standards (AVG Standards)

1.1 Why Standards Exist

At Arcanary, standards are not about control or rigidity.

They exist to remove ambiguity, reduce friction, and allow people to focus on design and delivery instead of administration.

Without standards:

information gets duplicated
naming becomes subjective
onboarding becomes slow
automation becomes impossible
errors repeat silently

With standards:

decisions are encoded once
structure replaces memory
quality becomes predictable
teams scale without chaos

Standards are not constraints.

They are shared agreements.

1.2 One Source of Truth

A core principle at Arcanary is the concept of a Source of Truth.

For any piece of information:

there must be one authoritative place
everything else must reference or derive from it
duplication is avoided unless explicitly justified

This applies equally to:

geometry
metadata
documents
schedules
specifications

If information exists in more than one place, one of them must clearly be wrong.

1.3 Derivation Over Duplication

Whenever possible, information should be:

derived, not copied
inferred, not restated
linked, not repeated

For example:

spatial hierarchy is derived (Room → SOU → Level → Building)
document status is derived from issue history
material intent is derived from host systems

This principle keeps the system:

lighter
more robust
easier to change

1.4 Thinking Alphanumerically

Everything at Arcanary is designed to be understood alphanumerically first.

This means:

names are composed of fields, not prose
field order is intentional
alphabetical and numerical sorting is expected, not accidental

Software always sorts A–Z.

If your structure does not respect that, software will eventually win — and not in your favour.

Alphanumeric thinking is applied to:

element codes
material codes
drawing numbers
file names
document names
folder structures

This is not an aesthetic choice.

It is information architecture.

1.5 Codes vs Names

A fundamental distinction in this system is between codes and names.

Codes
- compact
- space-free
- machine-readable
- used for elements, materials, drawings
Names
- human-readable
- composed of multiple fields
- fields separated by space – dash – space
- used for folders, files, and documents

If this distinction is respected, clarity follows naturally.

1.6 Consistency Over Preference

Individual preferences do not scale.

Shared systems do.

At Arcanary:

standards apply across offices
standards apply across projects
standards apply across roles

Consistency is more valuable than local optimisation.

The goal is not to be clever.

The goal is to be predictable.

1.7 What This Guide Is (and Is Not)

This guide:

is a living reference
is practical and production-oriented
is designed to support automation and QA
is not a software manual
is not a style guide
is not project-specific

It defines how Arcanary encodes information, regardless of tool or scale.

2. Terms, Statuses & the Project Lifecycle

Before we name objects, drawings, files, or documents, we must first be clear about time and intent.

At Arcanary, this is handled through Terms and Statuses.

They are deliberately simple, because they underpin everything else.

2.1 Terms: Defining the Project Lifecycle

A Term represents a distinct phase in the life of a project.

Terms are not versions, not deliverables, and not contractual labels.

They are a way of describing where the project is in time.

Arcanary uses a fixed, letter-based system:

Term	Name	Purpose
A	Analysis	Feasibility, due diligence, early testing
B	Design	Design development and planning approval
C	Coordination	Technical coordination and construction approval
D	Construction	Construction support and delivery
E	Usage	Post-construction use and lifecycle

These terms are:

sequential
non-overlapping
universally understood across the practice

A project always moves forward through terms, even if it loops internally.

2.2 What Terms Are Used For

Terms are used to:

structure documentation sets
define drawing numbering resolution
clarify intent when issuing documents
separate early design thinking from technical commitments

Terms are not used to:

name working files
define folders
encode element states
replace dates or revisions

This separation avoids confusion between process and production.

2.3 One Term, One Output

A critical rule at Arcanary is:

Every issued document belongs to one, and only one, term.

This means:

a PDF set is always a snapshot of a specific term
documents never mix A-term and B-term intent
later terms do not overwrite earlier ones

Files may evolve across terms.

Documents do not.

2.4 Statuses: Defining Intent, Not Time

While Terms define when something exists in the project lifecycle,

Statuses define what we intend to do with it.

Statuses are descriptive, not hierarchical.

Typical statuses include:

WIP (Work in Progress)
Draft
For Review
For Approval
Issued
Superseded

Statuses:

apply to documents and folders
help people understand reliability at a glance
do not replace revision control
do not replace dates

A status is a signal, not a history.

2.5 Status vs Revision vs Version

These three concepts are often confused. At Arcanary, they are distinct:

Version
- applies to editable files
- numeric (01, 02, 03…)
- internal working control
Date
- applies to issued documents
- represents the document version
- immutable once issued
Revision
- applies to documents
- alphabetic (Rev A, Rev B…)
- used when a document is formally revised
Status
- applies to folders or documents
- describes intent (Draft, Issued, etc.)
- optional and contextual

Keeping these separate avoids ambiguity and rework.

2.6 What Terms and Statuses Do Not Do

To keep the system clean:

Terms are not embedded in element or material codes
Statuses are not embedded in codes or drawing numbers
Revisions are not used for internal working files
Dates are not used in file names

Each concept has exactly one role.

2.7 Why This Matters

Clear separation of:

time (Terms),
intent (Statuses),
change (Versions / Revisions),

means that:

teams know what they are looking at
mistakes are caught earlier
automation becomes possible
historical information remains trustworthy

Most project confusion comes from mixing these concepts.

This system avoids that by design.

3. Realms

Once time and intent are clearly defined through Terms and Statuses, the next question is:

Where does information belong?

At Arcanary, the answer is handled through Realms.

3.1 What a Realm Is

A Realm is a domain of information.

It is not:

a discipline title
a consultant name
a contractual scope
a file type

A Realm answers a simpler, more fundamental question:

What kind of information is this?

Realms allow information to be:

grouped consistently
found quickly
reused safely
scaled across projects

3.2 Why Realms Are Numeric

Realms are intentionally:

numeric
zero-padded
ordered

For example:

03 Architecture

04 Interiors

06 Services

This is not cosmetic.

Numeric realms:

sort correctly in all systems
remain stable over time
allow new realms to be inserted without disruption
work equally well for folders, files, models, and schedules

Names may change.

Numbers must not.

3.3 The Canonical Realm List

Arcanary uses a fixed, practice-wide list of realms.

Code	Realm
00	Airband
01	Site
02	Context
03	Architecture
04	Interiors
05	Structure
06	Services
07	Landscape
08	Compliance
09	External

This list is:

shared across all offices
consistent across all projects
treated as a controlled vocabulary

New realms are added only deliberately, not ad hoc.

3.4 Realms vs Disciplines

A Realm is broader than a discipline.

For example:

Services is a Realm
- Mechanical, Electrical, Fire, Hydraulic are disciplines within it
Compliance is a Realm
- Town Planning, Traffic, Fire Engineering are disciplines within it

This distinction is important because:

disciplines change from project to project
realms remain stable

Realms create structural order;

disciplines add descriptive detail.

3.5 Where Realms Are Used

Realms appear consistently across the entire system:

Project folders
File names
Models
Documentation packages
Schedules and exports

Examples:

03 – Architectural Documentation

PMQ38 O3 Architecture Main Model 05 MGP

06 Services Mechanical Specifications

Because the realm is always first, information naturally groups when sorted.

3.6 What Realms Do Not Encode

To avoid overload, realms do not encode:

project phase (A, B, C, D)
status (WIP, Issued)
authorship
versioning

Those concepts are handled elsewhere.

A Realm does one job only.

3.7 Realms and Alphanumeric Thinking

Realms are a practical expression of alphanumeric thinking:

stable numbers first
descriptive text second
no ambiguity in sorting
no reliance on memory

If two people independently place information into the correct realm,

they will end up in the same place — without coordination.

That is the mark of a good system.

3.8 Common Mistakes to Avoid

Creating project-specific realms
Using consultant names instead of realms
Mixing multiple realms in one folder or file
Encoding scope or phase into the realm name

If information seems to “not fit” a realm, the issue is usually scope clarity, not the realm system.

4. Project – General Structure

Before any modelling, documentation, or production begins, every project at Arcanary is set up using a consistent, predictable structure.

This structure is not optional.

It ensures that:

information is always in the expected place
projects are navigable by anyone in the practice
onboarding is immediate
automation and QA are possible

4.1 The Project Root Folder

Every project starts with a single root folder, named using a fixed convention:

PROJECT NUMBER – PROJECT NAME – PROJECT CODE

Example:

24038 – 38 Shelley Beach Road – PMQ38

Each part has a clear role:

Project Number
- unique identifier
- used for tracking and administration
Project Name
- human-readable
- recognisable externally
Project Code
- short internal reference
- used in file naming and models

This combination balances:

clarity
brevity
uniqueness

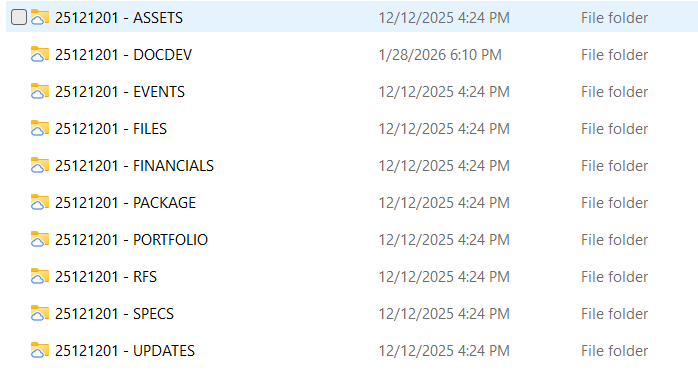

4.2 Fixed First-Level Project Folders

Inside the project root, a standard set of folders always exists, regardless of project size, type, or location.

These folders are:

created at project inception
identical across all projects
never renamed or reordered

This consistency:

eliminates guesswork
reduces training time
allows instant orientation across projects

People should never ask “where would this live?”

The answer should already be obvious.

4.3 Project Folders vs Production Folders

It is important to distinguish between:

Project-level folders (fixed, structural, long-lived)

and

Production / information folders (created as needed to host content)

Project-level folders define function.

Production folders define domain and responsibility.

4.4 Realm-Based Production Folders

When creating folders to host information — such as:

specifications
consultant documentation
authority submissions
coordination packages

—we always start with the Realm.

General structure:

REALM – DISCIPLINE – [STAKEHOLDER] – [METADATA]

Each field is separated using:

space – dash – space

4.5 Realm (Always First)

The Realm is the primary sorting key.

Example:

03 – Architectural Documentation

06 – Services Mechanical

08 – Compliance Town Planning

This ensures:

alphanumeric order
cross-project consistency
predictable navigation

Realm comes before discipline, author, or status — always.

4.6 Discipline (Descriptive Layer)

The Discipline clarifies the nature of the information within the realm.

Examples:

Architecture
Mechanical
Electrical
Fire
Landscape
Town Planning
Traffic

Discipline names are:

descriptive
human-readable
flexible within the realm structure

4.7 Stakeholder / Author (Optional)

When relevant, the stakeholder or author may be included.

This is typically used for:

consultant-provided information
externally authored documentation

Examples:

06 – Services Mechanical – WSP

08 – Compliance Town Planning – Ethos

Rules:

optional
never replaces the discipline
never used on its own

4.8 Additional Metadata (Optional)

Additional metadata may be appended only when useful at folder level.

Examples:

Status (WIP, Issued)
Purpose (DA, CC)
Review state

Example:

03 – Architectural Documentation – Arcanary – WIP

08 – Compliance Town Planning – DA

Folder-level metadata should remain:

broad
stable
meaningful over time

Granular metadata belongs in file names or document names, not folders.

4.9 What Folder Names Do Not Include

To keep the structure clean, folder names do not include:

dates
versions
drawing numbers
element codes
term letters (A, B, C, D)

Those concepts belong elsewhere in the system.

4.10 Why This Structure Works

This approach:

scales from small to very large projects
works across offices and time zones
supports automation and permissions
survives staff turnover
remains readable years later

Most importantly, it allows everyone to think less about structure and more about content.

4.11 Transition

With the project structure defined, we can now focus on what we actually produce.

That means:

documentation types
sets and drawings
files and documents
and how outputs are named and controlled

5. Documentation

With the project structure in place, we can now define what Arcanary produces and how outputs are identified and controlled.

In this guide, documentation refers to deliverables, not working material.

It is distinct from:

folders (which organise information),
files (which are editable containers),
and models (which are sources of data).

Documentation is issued, referenced, and relied upon.

5.1 Documentation Types

Arcanary distinguishes documentation by type, based on purpose rather than format.

The canonical document types are:

Drawings Graphical representations of the project
Sets Curated groups of drawings issued together
Reports Analytical or technical written documents
Schedules Tabulated outputs derived from data
Statements Formal declarations (e.g. Design Statement)
Presentations Visual communication documents
Admin Documents Contractual or administrative material

This classification clarifies expectations before naming begins.

5.2 Sets

A Set is a structured collection of drawings issued together for a specific term and purpose.

Examples include:

Architectural Set
Coordination Set
Construction Set

A set:

always belongs to one term
contains drawings from one or more subsets
is the primary unit of issue for drawings

5.2.1 Set Naming Convention

Set names are human-readable and follow this structure:

TERM – SET NAME

Examples:

A – Architectural

B – Architectural

C – Coordination

D – Construction

Set names are used in:

cover sheets
transmittals
document registers

They are not drawing numbers.

5.3 Drawings

A Drawing is a single, uniquely identified graphical document.

Every drawing:

belongs to one set
belongs to one subset
is identified by a drawing number

5.3.1 Drawing Number Structure

The canonical drawing number format is:

DISCIPLINE – SUBSET.SEQUENCE

Where:

DISCIPLINE identifies the primary authoring discipline
SUBSET identifies the drawing type
SEQUENCE identifies the drawing within that subset

This structure is stable across all terms.

5.3.2 Sequence Resolution by Term

The level of detail increases as the project progresses.

This is reflected in the length of the sequence number.

Term	Sequence Format	Typical Use
A	1 digit	Early concept
B	2 digits	Design / Planning
C	4 digits	Coordination
D	4 digits	Construction

The subset code remains unchanged.

Only the resolution of the sequence increases.

Example:

A-10.0000

This avoids renumbering while allowing the drawing set to scale.

5.4 Files (Editable Containers)

A File is an editable working container used to produce documentation.

Files:

may span multiple terms
evolve through versions
are controlled internally

They are not issued directly.

5.4.1 File Naming Convention

File names are structured fields, separated by double spaces, and follow this order:

PROJECT CODE – REALM – FILE NAME – VERSION – AUTHOR – [COMMENT]*

Example:

38.SHB.R – 03 – ARCHITECTURE – 34 – MGP – Temp for testing

Key principles:

project code is used internally
File name is in capitals
realm groups files logically
version is numeric and sequential
author is last, to avoid fragmentation
*last field is optional if needed to provide additionally info about the usage of the file

Dates and terms are not used in file names.

5.5 Documents (Issued Outputs)

A Document is a non-editable output derived from one or more files.

Typical formats:

PDF
Video

Documents are:

issued
referenced externally
controlled by date and revision

5.5.1 Document Naming Convention

Document names are composed of explicit fields, separated by space – dash – space:

PROJECT NAME – TERM – DOCUMENT TITLE – DATE(.ISSUE) – [STATUS]* – [REVISION]*

Example:

38 Shelley Beach Road – B – Architectural Drawings – 240918 – Issued – Rev A

5.5.2 Date as Version

For documents:

the date is the version
formatted as YYMMDD
immutable once issued

If multiple documents are issued on the same day:

240918.1

240918.2

5.5.3 Status and Revision

Status clarifies intent (Draft, Issued, For Review)
Revision records formal changes (Rev A, Rev B)

Statuses do not replace revisions.

Revisions do not replace dates.

Each has a distinct role.

5.6 What Documentation Naming Does Not Include

To keep responsibilities clear, documentation names do not include:

working file versions
author initials
realm codes
element or material codes

Those belong elsewhere in the system.

5.7 Why This Matters

Clear documentation conventions ensure that:

issued information is unambiguous
history is traceable
teams know what is current
external parties are not confused

Most documentation issues arise not from drawing quality, but from unclear identification.

This system prevents that.

6. Spatial

If documentation defines what we issue,

spatial definitions explain where things exist and who they belong to.

Spatial structure is fundamental because it:

establishes ownership and responsibility
allows correct aggregation of data
supports compliance, scheduling, and reporting
connects elements and materials to real-world use

At Arcanary, spatial entities are hierarchical, minimal, and explicit.

6.1 Spatial Hierarchy (Overview)

All spatial information follows a clear hierarchy:

Building

└── Level

└── SOU (Spatial Occupancy Unit)

└── Room / Space

Areas sit outside this hierarchy as analytical constructs.

This hierarchy is derived, not duplicated.

6.2 Buildings

Definition

A Building is a discrete constructed entity within a project.

Projects may contain:

one building, or
multiple buildings on the same site

Building Coding

Buildings are identified numerically:

B1, B2, B3…

Rules:

numbering starts at 1
numbers are stable
names and descriptions live in metadata

Examples:

B1 → Main building
B2 → Secondary building

This avoids ambiguity and supports multi-building projects cleanly.

6.3 Levels

Levels define vertical position relative to ground and datum.

They are not names, but positional identifiers.

6.3.1 Underground Levels

B1, B2, B3…

Rules:

B1 is the uppermost basement
numbering increases downward
no B0

6.3.2 Above-Ground Levels

L0, L1, L2, L3…

Rules:

L0 is the lowest ground level
numbering increases upward

6.3.3 Project Datum Level (Optional)

Used when:

a simplified datum is required
coordination benefits from abstraction

If not used, all levels are referenced to sea level.

6.3.4 Roof Levels

R, R1, R2…

Rules:

R represents the roof plane or ridge
rooftop equipment is excluded
multiple roof levels are counted upward

6.4 SOUs — Spatial Occupancy Units

Definition

A Spatial Occupancy Unit (SOU) represents an independently occupiable or ownable unit.

SOUs define:

ownership
tenancy
fire and acoustic responsibility
compliance boundaries

SOU Types

Code	Meaning	Typical Use
U	Unit	Apartment
T	Tenancy	Commercial / retail
D	Dwelling	House / townhouse

SOU Coding

U01, T03, D02

Rules:

numeric, sequential
leading zero used where appropriate
SOU code takes precedence over level in room naming

6.5 Rooms

Definition

A Room is an enclosed, occupiable subdivision within an SOU or building.

Rooms are context-dependent.

Their coding adapts to project complexity.

6.5.1 Simple Case

One building · one SOU · one level

01, 02, 03…

No prefixes required.

6.5.2 One SOU · Multiple Levels

L.RR

Examples:

0.01 → Ground floor room
1.02 → First floor room
B.01 → Basement room

6.5.3 Multiple SOUs

Rooms belong to an SOU first.

U1.01

T3.04

D2.02

Levels are implicit through the SOU.

6.5.4 Common Rooms (No SOU)

For shared spaces such as lobbies or plant rooms:

BuildingLevel.Room

Example:

1L3.01

→ Building 1, Level 3, Room 01

6.5.5 Multi-Level SOUs (Duplex / Penthouse)

When an SOU spans multiple levels:

both levels are encoded together

Example:

U5.45.01

Where:

45 represents lower and upper levels
01 is the room sequence

6.6 Spaces

Definition

A Space is a spatial entity that:

belongs to a level or SOU
is not fully enclosed

Examples:

balcony
terrace
roof terrace
deck
cabana
swimming pool
open courtyard

Coding Rule

Spaces follow the same coding rules as Rooms.

The distinction is enclosure, not hierarchy.

If it belongs to a level or SOU, it is coded accordingly.

6.7 Areas

Definition

An Area is an analytical construct used for:

measurement
compliance
reporting

Areas are not physical spaces.

Area Coding

Area types are identified by their acronym alone:

GFA

NLA

NSA

Rules:

acronym defines the criterion
spatial extent is derived, not encoded
areas may overlap rooms and spaces

6.8 What Spatial Codes Do Not Include

Spatial codes do not include:

element types
materials
document terms
statuses
revisions

Spatial identifiers answer where, nothing else.

6.9 Why This Matters

Clear spatial definitions allow:

accurate schedules
correct aggregation of quantities
clear ownership boundaries
consistent compliance checks

Most spatial confusion comes from mixing:

rooms and spaces
spaces and areas
ownership and geometry

This system avoids that by design.

7. Elements

At Arcanary, elements are the fundamental building blocks of the project.

They represent constructed systems, not materials and not products.

An element answers the question:

What is this thing, and what role does it play in the building?

7.1 What an Element Is

An element is:

a constructed system assembled on site
composed of one or more materials
spatially located within the project.

Typical examples include:

Walls, Floors, Ceilings, Roofs, openings, barriers, structural systems, service systems

7.2 Element Naming Philosophy

Element naming at Arcanary is:

compact
explicit
alphanumeric
space-free
stable over time

Element codes are machine-readable and used directly in:

BIM models
schedules
tags
keynotes

They are not designed to be prose.

7.3 Canonical Element Syntax

The canonical element code structure is:

CATEGORY[.QUALIFIER]-[f]NN[x]

There are no spaces anywhere in this code.

Each part has a specific meaning.

7.4 Category (Mandatory)

The Category defines what kind of element this is.

Rules:

uppercase letters
one, two, or three letters depending on the element family
drawn from the Arcanary category list

Examples:

WL → Wall
FL → Floor
CL → Ceiling
RF → Roof
STW → Structural Wall
W → Window
D → Door
BA → Barrier

The category is always the first identifier.

7.5 Qualifier (Optional)

The Qualifier refines the category by describing:

function, or
location, or
role within a system

Rules:

single uppercase letter
separated from the category by a dot
used only when it adds clarity

Examples:

WL.E → External wall (relative to SOU)
WL.I → Internal wall (relative to SOU)
WL.C → Core wall
WL.F → Internal finish wall system
WL.L → External finish wall system
STW.S → Structural wall

If no qualifier is required:

the dot is omitted
the category stands alone

7.6 Dash (Mandatory Separator)

A dash separates the element identity from the system definition.

Rules:

exactly one dash
no spaces before or after
always present

The dash marks the transition from what it is to which system it is.

7.7 Phasing / State (Optional)

The phasing indicates the state of the element.

Rules:

lowercase letter
optional
used only when needed

Typical uses:

existing elements
demolition elements
staged proposals

Important rule:

New / proposed elements do not require a facing.

New is the default state.

Examples:

WL.E-01 → New external wall

WL.E-e01 → Existing external wall

WL.E-d02 → Demolition wall

Demolition is additionally handled through native Revit phasing, not naming alone.

7.8 System Number (Mandatory)

The system number identifies a distinct construction system.

Rules:

two digits
starts at 01
sequential within the same element category

Examples:

The system number:

allows multiple wall types, floor types, etc.
is stable across drawings and schedules

7.9 Exception (Optional)

The exception identifies a minor variation of a system.

Rules:

single lowercase letter
appended directly after the number
no separator

Examples:

WL.E-01a

WL.E-01b

Exceptions:

do not create new systems
are used for small deviations (handing, glazing type, finish change)

7.10 Complete Element Examples

WL.E-01 → New external wall

WL.E-e01a → Existing external wall, variant

FL.I-02 → Internal floor system

STW.S-03 → Structural wall system

W.E-01 → New external window

BA-02 → Barrier system

All examples:

contain no spaces
follow the same grammar
sort predictably

7.11 What Element Codes Do Not Include

Element codes do not include:

materials
room numbers
SOU codes
levels
dates
document terms
statuses

Those belong to metadata, not naming.

7.12 Why This System Works

This approach ensures that:

tags are readable
schedules group correctly
systems are reusable
coordination is clear
QA can be automated

Most BIM confusion comes from encoding too much information into names.

This system avoids that by keeping element codes precise and minimal.

8. Materials

If elements describe what is built,

materials describe what those elements are made of.

At Arcanary, materials are treated as products — things that can be:

specified
sourced
replaced
scheduled

Materials are never abstract.

They always exist in relation to something else.

8.1 What a Material Is

A material represents:

a finish
a substrate
a core component
or a surface treatment

Materials are:

applied to elements
selected intentionally
controlled through catalogues and standards

Materials are not:

elements
systems on their own
spatial entities

A wall exists on site.

A material exists because it is applied to a wall.

8.2 Materials Are Always Contextual

A fundamental rule at Arcanary is:

Materials are always named in relation to their host.

This avoids:

ambiguous material definitions
orphan materials
misapplication across systems

You never define “render” on its own.

You define render applied to a wall.

8.3 Material Naming Philosophy

Material naming follows the same principles as element naming:

compact
alphanumeric
no spaces
predictable sorting

However, materials have a different syntax, because their role is different.

8.4 Canonical Material Syntax

The canonical material code structure is:

host.MATERIAL-[f]NN[x]

There are no spaces anywhere in the code.

Each part has a precise role.

8.5 Host Category (Mandatory)

The host defines the element category the material is applied to.

Rules:

lowercase
corresponds to an element category
always comes first

Examples:

wl → wall
fl → floor
cl → ceiling
rf → roof
jn → joinery

The host anchors the material in the building system.

8.6 Material Abbreviation (Mandatory)

The material abbreviation identifies the product type.

Rules:

uppercase
two-letter abbreviation
drawn from the Arcanary material abbreviation list

Examples:

RD → Render
CR → Concrete
VR → Brick
WD → Timber
GL → Glass
TL → Tile

The abbreviation is descriptive but compact.

8.7 Dash (Mandatory Separator)

A dash separates the material identity from the system definition.

Rules:

exactly one dash
no spaces
always present

8.8 Facing / State (Optional)

Materials also use facing, but with a different intent than elements.

Rules:

lowercase letter
optional
used to distinguish existing vs proposed

Important distinction:

Materials are not demolished.

They are replaced or removed.

Demolition is handled through:

element phasing
native Revit tools

Facing in materials is used only to clarify existing material state.

Examples:

wl.RD-01 → New wall render

wl.RD-e01 → Existing wall render

8.9 System Number (Mandatory)

The system number identifies a distinct material system.

Rules:

two digits
starts at 01
sequential within the same host + material combination

This allows:

multiple render systems
multiple tile specifications
controlled variation

8.10 Exception (Optional)

The exception identifies a minor variation of a material system.

Rules:

single lowercase letter
appended directly to the number
no separator

Examples:

fl.TL-02a

cl.PB-01b

Used for:

colour changes
finish variations
minor specification differences

8.11 Complete Material Examples

wl.RD-01 → New render on wall

wl.VR-e02 → Existing brick on wall

fl.CR-01 → Concrete floor finish

cl.PB-01 → Plasterboard ceiling

jn.WD-02a → Timber joinery, variant

All examples:

reference a host
follow the same grammar
sort consistently

8.12 Materials vs Catalogue Products

Materials describe intent.

Products describe selection.

A material:

defines performance and appearance
may be satisfied by multiple products

A product:

is a specific supplier item
belongs in specifications
may change without changing intent

This separation allows:

flexibility
substitution
long-term maintainability

8.13 Materials and Metadata

Materials carry metadata, but it is not encoded in the name.

Typical metadata includes:

category
host element
existing / proposed
fire rating
acoustic performance
sustainability attributes

Naming identifies the material.

Metadata explains it.

8.14 What Material Codes Do Not Include

Material codes do not include:

room numbers
SOU codes
levels
document terms
drawing numbers
supplier names

Those belong to schedules, specifications, or metadata.

8.15 Why This Matters

This material system ensures that:

materials are applied consistently
schedules are reliable
substitutions are manageable
BIM data remains clean
specifications remain flexible

Most material chaos comes from treating materials as free text.

This system eliminates that risk.
